Flagpole with gallows - fiberglass

The fiberglass gallows mast is highly resistant to wind, thanks to its conical shape. It’s the strongest, most durable mast available. Available in heights from 6 to 12m. The flags can be changed by reclining the mast, thanks to its tilting plate system.

In this version, the mast has no rope. The banner pole is fitted with a fixed pivoting cross-arm to keep the flag clearly visible at all times. The flagpole must be placed on the ground before removing or attaching the flags.

It is anti-corrosive and flexible in the wind so as not to break. Various heights available for fiberglass flagpoles with gallows: 6 to 12 meters. A quotation is drawn up within a short timeframe according to your requirements in terms of quantity of flagpoles and flags, type and model.

The BANNIÈRE flagpole is equipped with a horizontal arm, enabling the flag to be visible at all times, not just in windy conditions. Visible, durable, attractive and economical, the advertising flag enhances your image in all circumstances.

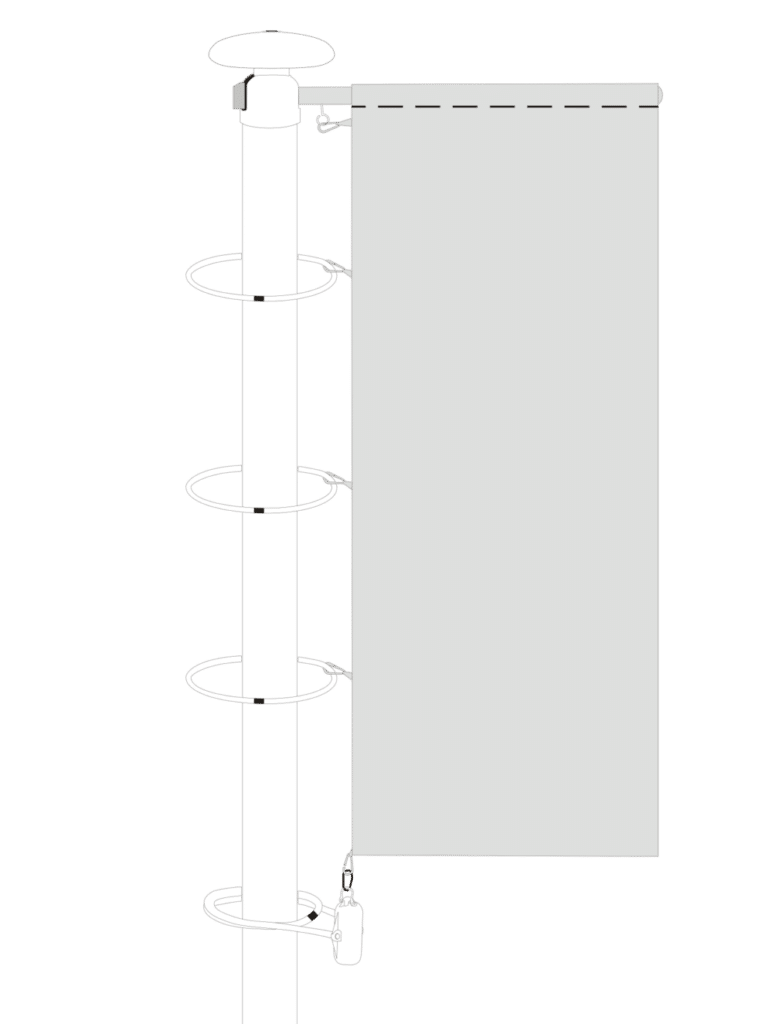

Complete set consisting of :

white fiberglass flagpoles (available in all RAL colors to order)
knob - white (optional "onion" shaped knob) - Position 1
^360o rotating stem - Position 2

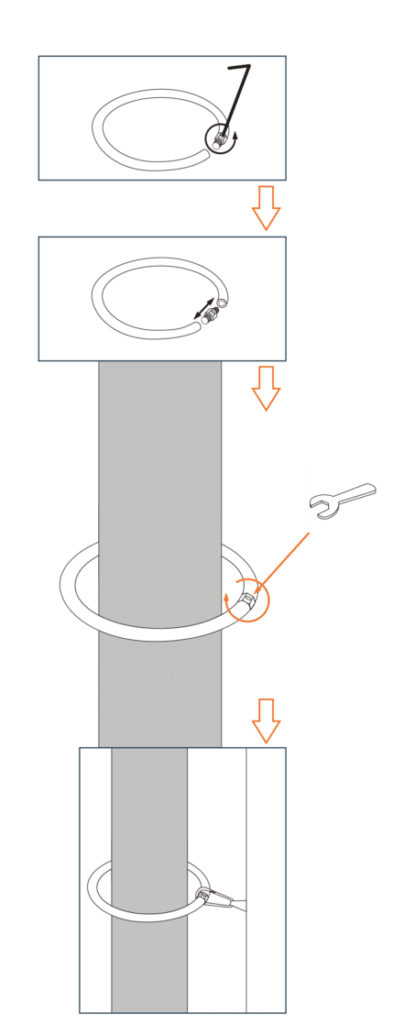

fixing ring (x5) - Position 3
counterweight (x1) - Position 4
hinge bracket (base+anchor)

Why choose a mast with bracket?

The advantage of a flagpole with stem is that the flag is always visible, even when there’s no wind. The stem ensures that the flag is always taut and therefore clearly visible. With a standard flagpole, your flag will be less visible in light winds.

Technical specifications for fiberglass jib masts

Hauteur [m]	6	7	8	9	10	11	12
Nombre de segments [pièces] ^*	1	1	1	1	1	1	1
Diamètre à la base [mm]	115	115	115	115	145	145	145
Diamètre en tête [mm]	65	65	65	65	65	65	65
Poids net sans accessoires [kg]	10,8	14,2	15,2	19,9	21,8	25,6	29,4
Dimensions recommandées du drapeau [m x m]	1,0 x 1,5	1,2 x 1,8	1,5 x 2,25	1,75 x 2,5	2,0 x 3,0	2,0 x 3,0	2,0 x 3,0

* Fiberglass masts are made from a single component (tube), which is tapered at the top.

Knobs available for masts

Mast knob type I – standard
white knob

Type II mast knob – optional
silver-coloured knob – aluminium

Mast knob type III – optional
Gold-coloured knob – brass

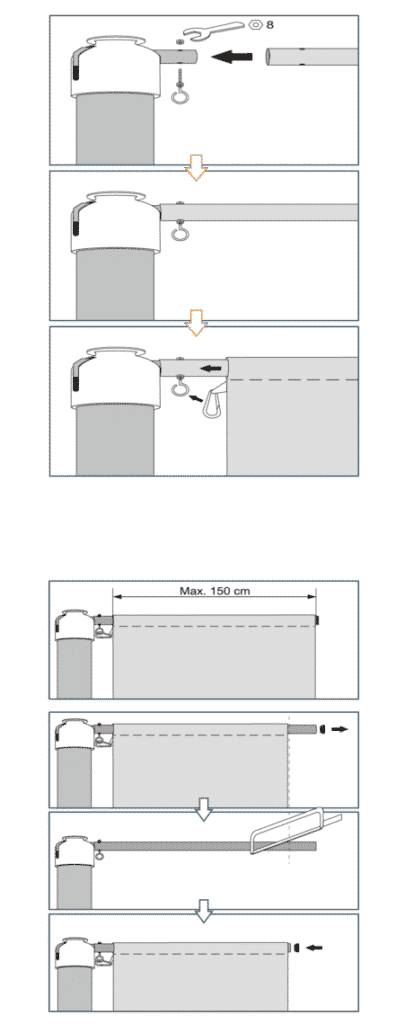

Fixing and hoisting flags

– horizontal arm
– counterweight
– necklaces

To help you understand exactly which types of mast we sell, we’ve drawn up a table showing the similarities and differences between them.

Type mât drapeau / Caractéristique	Platine basculante	Bras horizontal	Drisse	Serrure et clé
standard			drisse extérieur
standard antivol			drisse intérieur
à potence
à potence ascensionnelle			drisse intérieur
* “À potence” et “À potence ascensionnelle” – le drapeau est visible et sans vent (grâce au bras rotatif horizontal). ** Le type “à potence” n’est pas équipé avec drisse. Pour changer le drapeau doit abaisser le mât. Les modèles “Standard antivol” et “À potence ascensionnelle” peuvent être équipés en option de treuil pour lever et abaisser le drapeau.

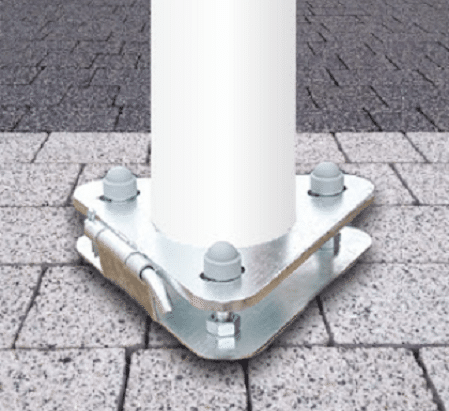

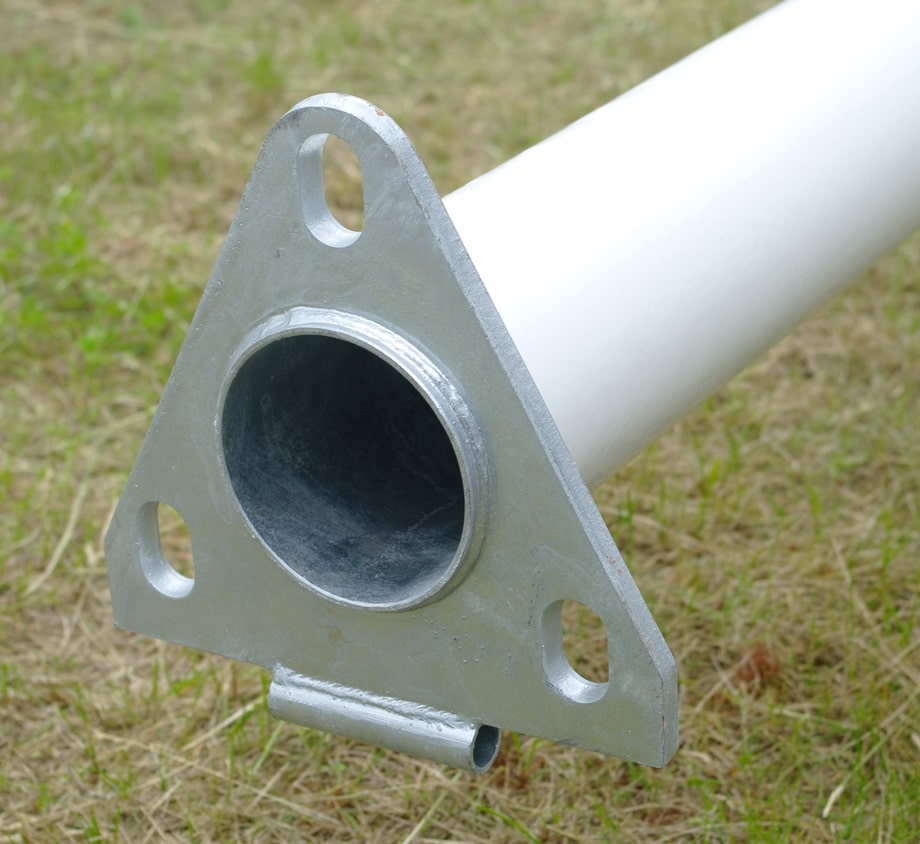

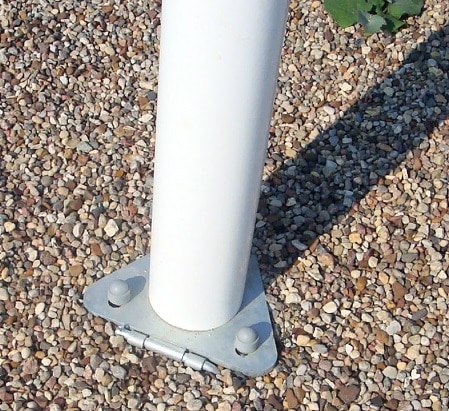

Foundation. Tilting plate for floor mounting (anchoring rods and bolts supplied).

Instructions for creating a foundation for a tilting stage

These instructions are guidelines for the manufacture of a foundation and should be treated as information. For final foundation design, please consult a local architect and civil engineer familiar with the terrain and specific climatic characteristics where the foundation will be built.
The information presented in these instructions may be subject to technical modifications without prior notice.

Figure 1 – Dig a pit with dimensions:
– for mast height 6m – pit dimensions Φ40cm x H = 100cm
– for mast height 8m – pit dimensions Φ45cm x H = 100cm
– for mast height 10m – pit dimensions Φ50cm x H = 120cm
– for mast height 12m – pit dimensions Φ60cm x H = 120cm

Figure 2 – Pour about 5 cm of gravel at the bottom of the pit

Figure 3 – Position the foundation anchors and metal baseing about 2 cm above the pit. Fill the pit with concrete.

Figure 4 – After about 7 days of decofractionation.

Figure 5 – Fix the tilting plate nail, lift the mast and tighten the screws.
Figure 6 – Adjust the screws to position the mast perfectly.

At the site where the poles are erected, the possibility of collision with vehicles must be minimized. To this end, the pole must be masked by a safety frame at heights that ensure protection from vehicles.
The masts must be erected by at least two people.

Mast assembly/maintenance instructions

Flagpoles are designed to display national, organizational, corporate, advertising and other flags.
Flagpoles can be of one-piece or cutaway construction. They can be made of aluminum or fiberglass.
The mast can be installed: in a concrete foundation or on a mast sleeve
Flagpoles can be between 6 and 12 meters high. Flagpoles must be installed and used in such a way as not to endanger people or property.
When storing the flagpole, it is important to check all its components and the appropriate method of attachment. Maintenance or repair operations involving the replacement of accessories, which require the flagpole to be installed, must be carried out under maximum safety conditions, with at least three people present.

WARNING!

– In strong winds above 40 km/h, we recommend lowering the flag to half mast height.
– In the event of a storm warning or winds exceeding 60 km/h, the flag must be removed from the mast immediately.

To help you understand the exact conditions under which the flag must be lowered or the mast folded (for the “gallows” version), we’ve enclosed an informative table concerning wind speed. To find out the exact wind speed, please refer to the “Weather Forecast” specific to the pole mounting area.
The Beaufort scale is an empirical measurement scale of 13 degrees (0 to 12) of average wind speed over a ten-minute period.

Force	Termes	Vitesse (km/h)	Effets à terre (à 10 m de hauteur, en terrain plat et à découvert)
0	Calme	< 1	La fumée monte verticalement. Les feuilles des arbres ne témoignent aucun mouvement.
1	Très légère brise	1 à 5	La fumée indique la direction du vent. Les girouettes ne s'orientent pas.
2	Légère brise	6 à 11	On sent le vent sur le visage. Les feuilles s'agitent. Les girouettes s'orientent.
3	Petite brise	12 à 19	Les drapeaux flottent au vent. Les feuilles sont sans cesse en mouvement.
4	Jolie brise	20 à 28	Les poussières s'envolent. Les petites branches plient.
5	Bonne brise	29 à 38	Le tronc des arbustes et arbrisseaux en feuilles balance. La cime de tous les arbres est agitée. Des vaguelettes se forment sur les eaux intérieures.
6	Vent frais	39 à 49	On entend siffler le vent. Les branches de large diamètre s'agitent. Les parapluies sont susceptibles de se retourner.
7	Grand frais	50 à 61	Tous les arbres balancent. La marche contre le vent peut devenir difficile.
8	Coup de vent	62 à 74	Les branches sont susceptibles de casser. La marche contre le vent est très difficile, voire impossible.
9	Fort coup de vent	75 à 88	Le vent peut légèrement endommager les bâtiments : envols de tuiles, d'ardoises, chutes de cheminées.
10	Tempête	89 à 102	Dégâts importants aux bâtiments. Les toits sont susceptibles de s'envoler. Certains arbres sont déracinés.
11	Violente tempête	103 à 117	Ravages étendus et importants.
12	Ouragan ou bombe météorologique au-dessus du 40° parallèle	supérieur à 118	Dégâts très importants de l'ordre de la catastrophe naturelle.
